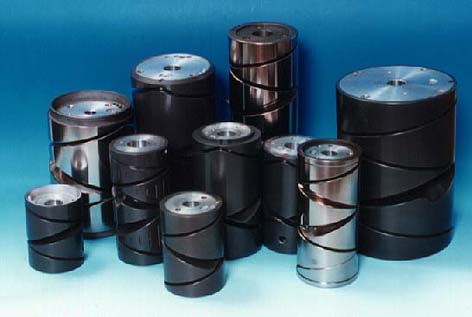

�uDRUMS FOR MANUAL WINDERS�v

• A wide variety of drums from 3" traverse to 22 1/2" traverse is
  available in various pitches.

  We also offer some of these drums in either aluminum or steel.
  For aluminum drums, the surface is hardened with 'hard aluminum oxide
  treatement, and for steel drums, nitriding is applied.

  Futhermore, ceramic reinforcemens are embedded at the reversing points
  and crossing sections by request.




  Drum No.	Out dia.	Trav.	Pitches	Total Length	Step edge	Yarn cutting	Package shape
  	(mm)	length		(mm)		recess
  		(inch)
  330-1.01	70	3	1.5	90			0�00' PARALLEL
  430-1.01	82	4	1.5	115			0�00' PARALLEL
  4 3/4 40-1.01	82	4 3/4	2	145			0�00' PARALLEL
  530-1.02	90	5	1.5	147		WTH	0�00' PARALLEL
  530-4.01	82	5	1.5	150			0�00' PARALLEL
  540-4.01	82	5	2	156			0�00' PARALLEL
  544-5.01	82	5	2	156			3�00'-5�00'CONE
  550-2.01	82	5	2.5	150			0�00' PARALLEL
  5 7/8 69-1.01	69	5 7/8	3	198			7�00'-7�30'CONE
  630-1.21	95	6	1.5	174			0�00' PARALLEL
  630-4.02	165	6	1.5	182	WITH		0�00' PARALLEL
  640-1.01	82	6	2	175			0�00' PARALLEL
  643-12.01	95	6	2	174		WITH	3�00'-7�00' CONE
  649-11.01	95	6	2	174		WITH	7�01'-9�30' CONE
  650-3.01	90	6	2.5	169			0�00' PARALLEL
  650-4.01	82	6	2.5	178		WITH	0�00' PARALLEL
  650-4.02	82	6	2.5	178	WITH	WITH	0�00' PARALLEL
  653-7.01	82	6	2.5	178		WITH	3�00'-7�00' CONE
  653-7.02	82	6	2.5	178	WITH	WITH	3�00'-7�00' CONE
  659-9.01	82	6	2.5	178		WITH	7�01'-9�36' CONE
  750-1.01	97	7	2.5	201			0�00' PARALLEL
  840-1.11	165	8	2	230		WITH	0�00' PARALLEL
  850-1.01	90	8	2.5	225		WITH	0�00' PARALLEL
  863-1.02	90	8	3	230		WITH	3�00'-7�00' CONE
  870-1.02	90	8	3.5	230			0�00' PARALLEL
  1040-1.02	130	10	2	280			0�00' PARALLEL
  1050-1.01	100	10	2.5	280			0�00' PARALLEL
  1063-1.01	100	10	3	280			3�00'-7�00' CONE
  1070-1.02	100	10	3.5	280		WITH	0�00' PARALLEL
  1283-1.01	100	12	4	336			3�00'-7�00' CONE
  1280-2.01	100	12	4	336			0�00' PARALLEL
  1480-1.01	100	14	4	385			0�00' PARALLEL



  ---
