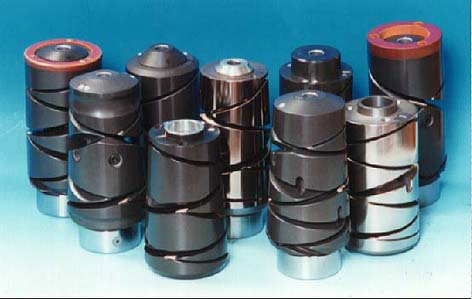

"DRUMS FOR 138 SCHLAFHORST AUTOCONERS"
(ALUMINUM DRUMS)
----- GKN TYPE -----
| Drum No. | Out dia. | Trav. | Pitches | Package Shape | Ceramics | Remarks | | (mm) | length | | | (pcs) |
|---|
| | (mm) | | | |
|---|
| 530-6.01-S | 90 | 125 | 1.5 | 0ß00'- 4ß20' CONE | 6 |
|---|
| 540-6.01-S | 90(91) | 121 | 2 | 0ß00' PARALLEL | 7 | STEP EDGE(STARTER RING) |
|---|
| 544-11.01-S | 88.5(90) | 125 | 2 | 4ß20' CONE | 7 |
|---|
| 540-13.01-S | 90(91) | 131 | 2 | 0ß00' PARALLEL | 7 | STEP EDGE(STARTER RING) |
|---|
| 550-5.01-S | 90(91) | 131 | 2.5 | 0ß00' PARALLEL | 8 | STEP EDGE(STARTER RING) |
|---|
|
----- GKU TYPE -----
| Drum No. | Out dia. | Trav. | Pitches | Package Shape | Ceramics | Remarks | | (mm) | length | | | (pcs) |
|---|
| | (mm) | | | |
|---|
| 630-6.01-S | 95 | 150 | 1.5 | 0ß00' PARALLEL | 6 |
|---|
| 630-7.01-S | 92/94.5 | 150 | 1.5 | 0ß00' PARALLEL | 6 | |
|---|
| 630-8.01-S | 92/94.5 | 150 | 1.5 | 0ß00' PARALLEL | 6 | WITH DRIVE RING(BAKELITE) |
|---|
| | | | | | TOTAL LENGTH 218 |
|---|
| 643-8.01-S | 95 | 150 | 2 | 2ß00'- 4ß20' CONE | 7 | |
|---|
| 643-8.11-S | 95 | 150 | 2 | 2ß00'- 4ß20' CONE | 7 | WITH DRIVE RING(BAKELITE) |
|---|
| | | | | | TOTAL LENGTH 218 |
|---|
| 653-12.01-S | 95 | 150 | 2.5 | 2ß00'- 6ß00' CONE | 8 | |
|---|
| 650-22.01-S | 95 | 150 | 2.5 | 0ß00' PARALLEL | 8 | |
|---|
| 663-8.01-S | 95 | 150 | 3 | 2ß00'- 4ß20' CONE | 9 | |
|---|
| 663-10.01-S | 95 | 148 | 2.5/3.5 | 3ß00'- 6ß00' CONE | 9 | IRREGULAR PITCHES |
|---|
|
----- GKW TYPE -----
| Drum No. | Out dia. | Trav. | Pitches | Package Shape | Ceramics | Remarks | | (mm) | length | | | (pcs) |
|---|
| | (mm) | | | |
|---|
| 649-7.01-S | 81/99 | 150 | 2 | 4ß20'- 9ß36' CONE | 7 |
|---|
| 659-13.01-S | 81/99 | 150 | 2.5 | 5ß57'- 9ß36' CONE | 8 | STEP EDGE(STARTER RING) |
|---|
| 665-3.01-S | 81/99 | 150 | 3 | 3ß00'- 6ß00' CONE | 9 |
|---|
| 665-4.01-S | 81/99 | 148 | 2.5/3.5 | 3ß00'- 6ß00' CONE | 9 | IRREGULAR PITCHES |
|---|
|
(STEEL DRUMS)
----- GKN TYPE -----
| Drum No. | Out dia. | Trav. | Pitches | Package Shape | Ceramics | Remarks | | (mm) | length | | | (pcs) |
|---|
| | (mm) | | | |
|---|
|
----- GKU TYPE -----
| Drum No. | Out dia. | Trav. | Pitches | Package Shape | Ceramics | Remarks | | (mm) | length | | | (pcs) |
|---|
| | (mm) | | | |
|---|
 630-6T.01-S | 95 | 150 | 1.5 | 0ß00'- 4ß20' CONE | 3 | |
|---|
| 643-8T.01-S | 95 | 150 | 2 | 2ß00'- 4ß20' CONE | 3 | |
|---|
|
----- GKW TYPE -----
| Drum No. | Out dia. | Trav. | Pitches | Package Shape | Ceramics | Remarks | | (mm) | length | | | (pcs) |
|---|
| | (mm) | | | |
|---|
| 649-7T.01-S | 81/99 | 150 | 2 | 5ß57'- 9ß15' CONE | 3 | |
|---|
| 655-3T.01-S | 81/99 | 148 | 2/3 | 3ß00'- 6ß00' CONE | 3 | IRREGULAR PITCHES |
|---|
|
"DRUMS FOR 238 SCHLAFHORST AUTOCONERS"
| Drum No. | Out dia. | Trav. | Pitches | Package Shape | Ceramics | Remarks | | (mm) | length | | | (pcs) |
|---|
| | (mm) | | | |
|---|
|
630-11T.01-B4 | 95 | 150 | 1.5 | 0ß00'- 4ß20' CONE | 4 | |
|---|
|
640-2T.01-B2 | 95 | 148 | 2 | 0ß00' PARALLEL | 2 | |
|---|
|
640-3T.01-B2 | 95 | 153 | 2 | 0ß00'- 4ß20' CONE | 2 | |
|---|
|
643-25T.01-B3 | 95 | 153 | 2 | 2ß00'- 6ß00' CONE | 3 | |
|---|
|
653-24T.01-B2 | 95 | 152 | 2.5 | 2ß00'- 6ß00' CONE | 2 | IRREGULAR PITCHES |
|---|
| 665-6T.01-B3 | 95 | 152 | 2.5/3.5 | 3ß00'- 6ß00' CONE | 3 | IRREGULAR PITCHES |
|---|
|
